New project. Silvertone 672

Please put your pickup/wiring discussions in the Electronics section; and put discussions about repair issues, including fixing errors in new instruments, in the Repairs section.
User avatar
Greg McKnight
Posts: 80
Joined: Wed Dec 24, 2014 11:29 pm

New project. Silvertone 672

Post by Greg McKnight »

My Granddad bought this at a yard sale several years ago and left it to his son (my uncle). It needed more TLC than he was able to give it so he sent it to me. Tuners are the obvious first priority, and I've ordered some. I'll be doing a fret leveling today and hopefully that goes well. There's no truss rod and there is a bit of difference in level between most of the fretboard and the portion directly over the body. Neck does look straight fortunately. The case is a wreck. The bridge and nut may be salvageable, but we'll see. I'll have to construct a pickguard, and these evidently came with either a black or white one with a similar shield to the headstock embossed on it. It has all the checking in the finish that you'd expect (and desire, likely). I didn't know anything about this guitar until some internet research. Silvertoneworld.com says it is a 672 which was introduced in 1950 and retired in 1953. No label inside so I guess I'll never know for sure. Should be a fun project.
Attachments

Barry Daniels
Posts: 2434
Joined: Thu Jan 05, 2012 10:58 am
Location: The Woodlands, Texas

Re: New project. Silvertone 672

Post by Barry Daniels »

Very cool.
MIMF Staff

User avatar
Greg McKnight
Posts: 80
Joined: Wed Dec 24, 2014 11:29 pm

Re: New project. Silvertone 672

Post by Greg McKnight »

Barry Daniels wrote:Very cool.
Well, yes and no :lol: . Upon closer inspection, there has been a neck reset which didn't go so well. The fretboard extension is laying on the top, there's that gap at the joint, and the glue they used has dripped quite a bit inside the guitar, making a real mess. Won't be able to clean it up either, unfortunately. When I saw that the bridge had been adjusted to it's lowest position, I was concerned and now I know why that was done. The reset didn't solve any problem as far as I can tell, at least not the original problem I would guess. The glue almost looks like Elmer's school glue. It's dried hard and is milky white. Hopefully it won't be too hard to remove the neck. At least it's not epoxy!

I have done one neck reset. Oddly enough, also from a guitar from the same uncle--a Martin from the 40s if I remember correctly. It went well enough so I'm not too intimidated. Hope that glue is easy to dissolve/melt though.

I measured the scale length to be 25.875". Mind you, I used a tape measure, which might not be the most accurate method. That seems rather long but I'm far from an expert.

Well, I'll have to dig out the steam rig before I can do anything. Shame though, I wanted to get started on it.

Barry Daniels
Posts: 2434
Joined: Thu Jan 05, 2012 10:58 am
Location: The Woodlands, Texas

Re: New project. Silvertone 672

Post by Barry Daniels »

What would be your goal(s) of doing another reset?
MIMF Staff

Joshua Levin-Epstein
Posts: 225
Joined: Sun Jan 08, 2012 7:58 am
Location: Massachusetts

Re: New project. Silvertone 672

Post by Joshua Levin-Epstein »

What's wrong with the machines?

John Clifford
Posts: 180
Joined: Mon Dec 18, 2017 3:08 pm

Re: New project. Silvertone 672

Post by John Clifford »

Interesting body shape, with the wide shoulders and tight curves at the waist. What's it sound like, or can't you tell at this point?

Brian Evans
Posts: 869
Joined: Sat Aug 30, 2014 8:26 am
Location: Tatamagouche, Nova Scotia

Re: New project. Silvertone 672

Post by Brian Evans »

There are a lot of people who put a fair bit of love into those old Silvertones, it's worth putting back together. Or passing on to someone who will.

User avatar
Greg McKnight
Posts: 80
Joined: Wed Dec 24, 2014 11:29 pm

Re: New project. Silvertone 672

Post by Greg McKnight »

Barry Daniels wrote:What would be your goal(s) of doing another reset?
I would hope to get it right this time around. Closing up the gaps at the bottom of the neck heel and under the fretboard extension would certainly make it look better, and there isn't a whole lot of room for a bridge as it is now. The top pic is a straight edge running on the fretboard and measuring at the bridge position.
Attachments

User avatar
Greg McKnight
Posts: 80
Joined: Wed Dec 24, 2014 11:29 pm

Re: New project. Silvertone 672

Post by Greg McKnight »

Joshua Levin-Epstein wrote:What's wrong with the machines?
I thought I had included that pic the first time around.
Attachments
20190109_165919 (1).jpg

Barry Daniels
Posts: 2434
Joined: Thu Jan 05, 2012 10:58 am
Location: The Woodlands, Texas

Re: New project. Silvertone 672

Post by Barry Daniels »

Wow!
MIMF Staff

Brian Evans
Posts: 869
Joined: Sat Aug 30, 2014 8:26 am
Location: Tatamagouche, Nova Scotia

Re: New project. Silvertone 672

Post by Brian Evans »

That's a whole new level of hillbilly... :) On the bridge, you are looking for around 1" or so over the top with the straightedge on the fretboard. I'd reset the neck.

User avatar
Greg McKnight
Posts: 80
Joined: Wed Dec 24, 2014 11:29 pm

Re: New project. Silvertone 672

Post by Greg McKnight »

Brian Evans wrote:That's a whole new level of hillbilly... :) On the bridge, you are looking for around 1" or so over the top with the straightedge on the fretboard. I'd reset the neck.
Well I am a hillbilly, so this is a match made in heaven :lol: .

Update: finally got the neck removed via steam.
Attachments
Underside of fretboard extension.
Underside of fretboard extension.
Mortise after glue was cleaned out.
Mortise after glue was cleaned out.

Brian Evans
Posts: 869
Joined: Sat Aug 30, 2014 8:26 am
Location: Tatamagouche, Nova Scotia

Re: New project. Silvertone 672

Post by Brian Evans »

Nice solid wood top, carved or pressed. Good deal.

User avatar
Mark Langner
Posts: 62
Joined: Wed Feb 22, 2012 10:36 pm
Location: Burnsville, NC
Contact:

Re: New project. Silvertone 672

Post by Mark Langner »

Looks like a fun project. These old archtops are quite fascinating. I have worked on a few Kay and Harmony models, and their owners always treasure them, even though they are usually a wreck. It is a lot of fun to just bring them even part-way back to life. A few years ago, when I did some fixes on a Harmony for a friend ("Just make it playable", they usually say), I took measurements and then built a carved model to the same specs. Turned out really nice, and the friend who owns it just loves it. Good luck with this project, and I look forward to seeing the results.
Garbage In, Compost Out

User avatar
Greg McKnight
Posts: 80
Joined: Wed Dec 24, 2014 11:29 pm

Re: New project. Silvertone 672

Post by Greg McKnight »

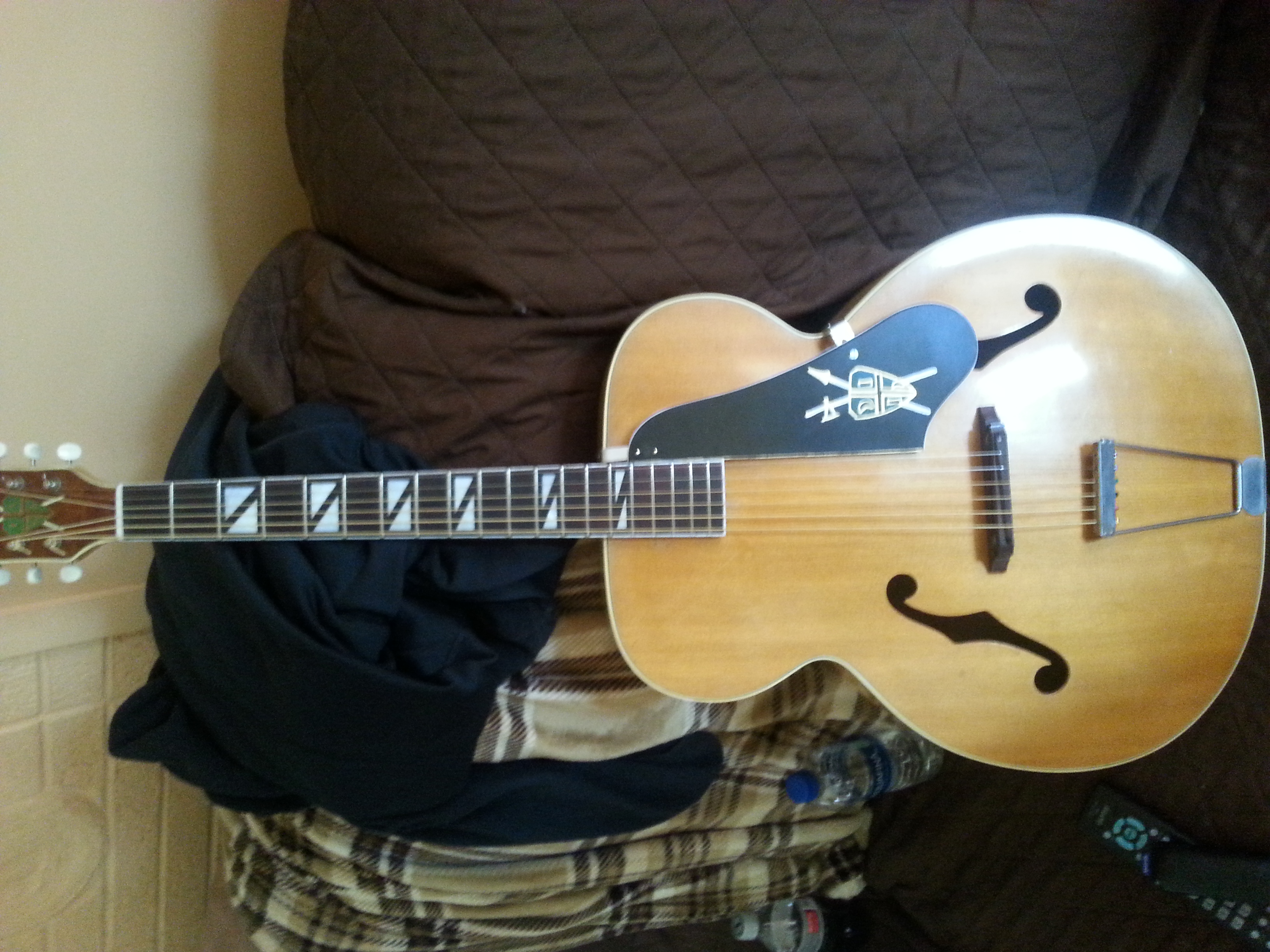

I tried to avoid a refret but, after leveling and having some really low frets, I had to do it. Leveled the fretboard and replaced the binding. It was very thin and brittle. Made a new nut and bridge base, as the old one was way too low to work after the neck reset. Oh yeah, also fabricated a pickguard modeled after pics from the Silvertone world website. Had a friend with one of those vinyl label makes print off a shield like the one on the headstock, then colored it to match.

Anyway, it's all done now and it sounds and plays great. I actually think it sounds better than the archtop I made myself :oops: . Next I'll try to tackle the case, which has an unattached top. Don't really know how I'll do that but I must figure something out.

I don't know how to rotate the pics, so they're a bit confusing.
Attachments
20190314_105350 (1).jpg

Barry Daniels
Posts: 2434
Joined: Thu Jan 05, 2012 10:58 am
Location: The Woodlands, Texas

Re: New project. Silvertone 672

Post by Barry Daniels »

Nice work, Greg.
MIMF Staff

Bob Francis
Posts: 502
Joined: Wed Jan 11, 2012 6:28 pm

Re: New project. Silvertone 672

Post by Bob Francis »

That looks incredible!

User avatar
Greg McKnight
Posts: 80
Joined: Wed Dec 24, 2014 11:29 pm

Re: New project. Silvertone 672

Post by Greg McKnight »

Thanks for the kind words :)

User avatar
Mark Langner
Posts: 62
Joined: Wed Feb 22, 2012 10:36 pm
Location: Burnsville, NC
Contact:

Re: New project. Silvertone 672

Post by Mark Langner »

Nice work! A labor of love.
Garbage In, Compost Out

Clay Schaeffer
Posts: 1364
Joined: Fri Jan 06, 2012 12:04 pm

Re: New project. Silvertone 672

Post by Clay Schaeffer »

Very nicely done.
