Hello All,

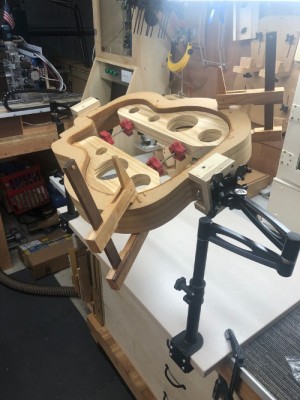

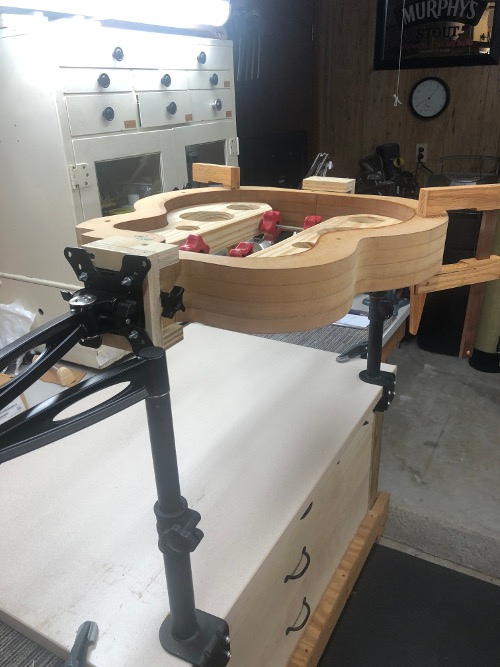

Here is my spin on a jig to help flip the body when you are gluing and clamping. I've found that gluing the top or back on is not difficult on its own however, for me, flipping the whole assembly over to inspect or clean out squeezed glue was an awkward pain not to mention heavy. So, using a couple of computer monitor stands, some small swivel plates from Amazon, a few bolts and some MDF, I can now glue a top or back on and then rotate the body wherever I need it with ease.

It puts the body assembly a foot and a half above the work surface but I'm pretty tall so no issue. It could also be mounted lower. You just need to have clearance for the clamps as they rotate by. Spool clamps would be even better for this.

I've always thought it's about working smarter not harder, right?

Thanks for looking!
Attachments
IMG_5376 - Copy.JPG
IMG_5377 - Copy.JPG
IMG_5378 - Copy.JPG

Mark Wybierala
Posts: 469
Joined: Fri Feb 03, 2012 10:14 am
Location: Central New Jersey

Re: Body Form Support

Post by Mark Wybierala »

Way cool! I love it when an idea like that pops in your head and it ends up working. Yea, the assembly is heavy and more than once, I've dented a top or side by being clumsy only to need to perform repair on an instrument that isn't yet finished. Lot of bench space for clamps and clean up materials at the ready

Clamp up the body nicely and then install a chicken over a space heater.

Bob Francis
Posts: 506
Joined: Wed Jan 11, 2012 6:28 pm

Re: Body Form Support

Post by Bob Francis »

Really clever ! And like Mark said it should work for a chicken in a pinch!

User avatar
DJ Parker
Posts: 113
Joined: Tue Feb 07, 2012 9:05 pm
Location: Jacksonville, Fl.

Re: Body Form Support

Post by DJ Parker »

Thanks Fellows! Let's not stop at chicken, it would actually hold a small pig :P

Fred Battershell
Posts: 21
Joined: Mon Apr 06, 2015 6:23 pm

Re: Body Form Support

Post by Fred Battershell »

Unique and cool!! How is the rigidity factor with those 2 upright posts?

User avatar
Jo Dusepo
Posts: 56
Joined: Fri Jul 21, 2017 11:12 am
Location: London, Britain
Contact:

Re: Body Form Support

Post by Jo Dusepo »

Great design!
I specialise in historical & world instruments.
